Situm Mapping Tool is an Android application developed by Situm that will allow you to configure & test Situm in your venues. For a quick overview on Situm Mapping Tool, you can check out our user guide here


Visualize your building cartography

Situm Mapping Tool allows you to explore & visualize all your cartography data, including:

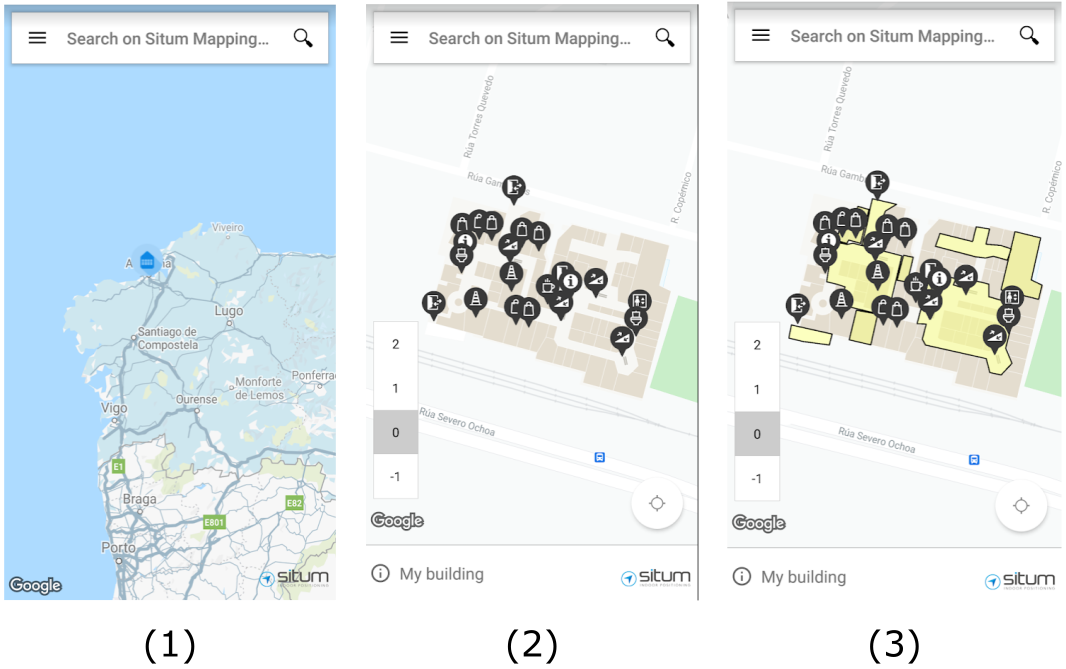

  1. Buildings. You may see all your buildings on top of a world map (1), with a handy search bar to select any of them.
  2. Floorplans. You will be able to visualize all the floorplans of every building (2), for all the floors.
  3. Points of Interest. On top of each floorplan, Situm Mapping Tool displays all the POIs (2), each one with a different icon depending on its category.
  4. Geofences. Finally, you will be able to view all the geofences that you have defined in your building (3).



Calibrate your building

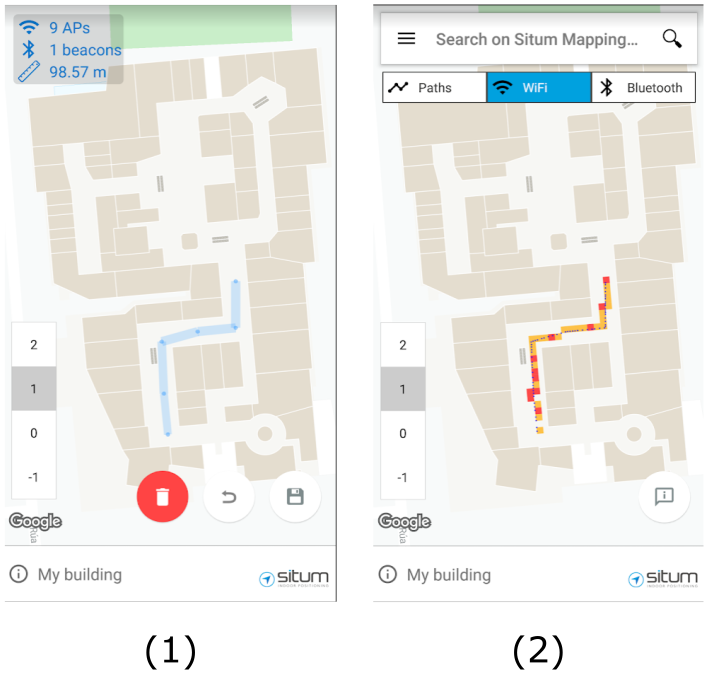

Situm Mapping Tool allows you to set up Situm positioning in your building. You will just need to perform a simple calibration step: (1) walk around your building pinpointing your location from time to time, and Situm Mapping Tool will build all the signal maps for you (2). After that, Situm positioning will be up & running.



Test Situm positioning & wayfinding

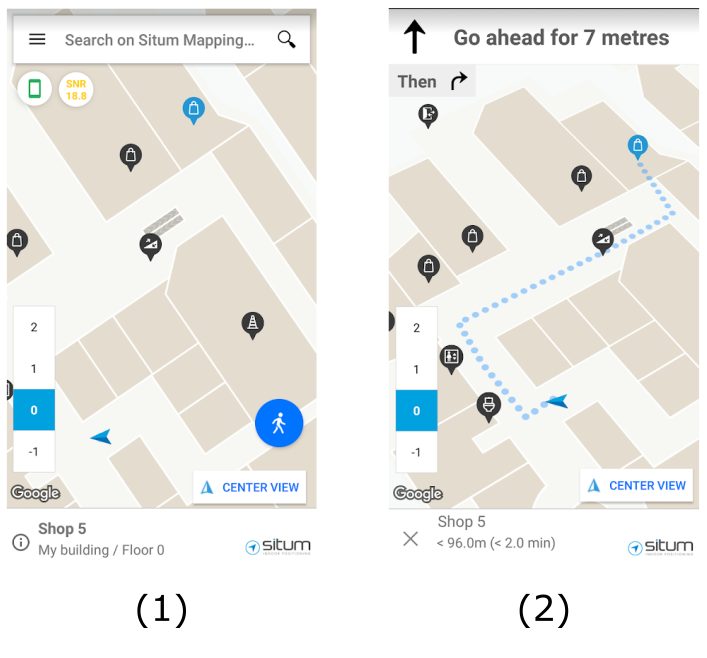

Finally, (1) you will be able to test the Situm indoor and outdoor positioning and accuracy. On top of that, (2) you will be able to test the navigation paths that you have configured for your building, by computing routes from point A to B and receiving turn-by-turn instructions (text and voice) while you move around your building.
