When you calibrate a building, you draw a virtual path that connects all the calibration points. This path contains the points where Situm Mapping Tool has captured the WiFi/BLE readings. Situm Dashboard allows you to modify the Path Width, which represents the width of the virtual paths that you draw when you calibrate.
This width has a direct effect on the space that you will cover with each calibration: the wider the path, the farther each calibration point will have influence. For a detailed explanation on how to adjust the Path Width for your building, please refer to this article.
Changing the Path Width in Situm Dashboard

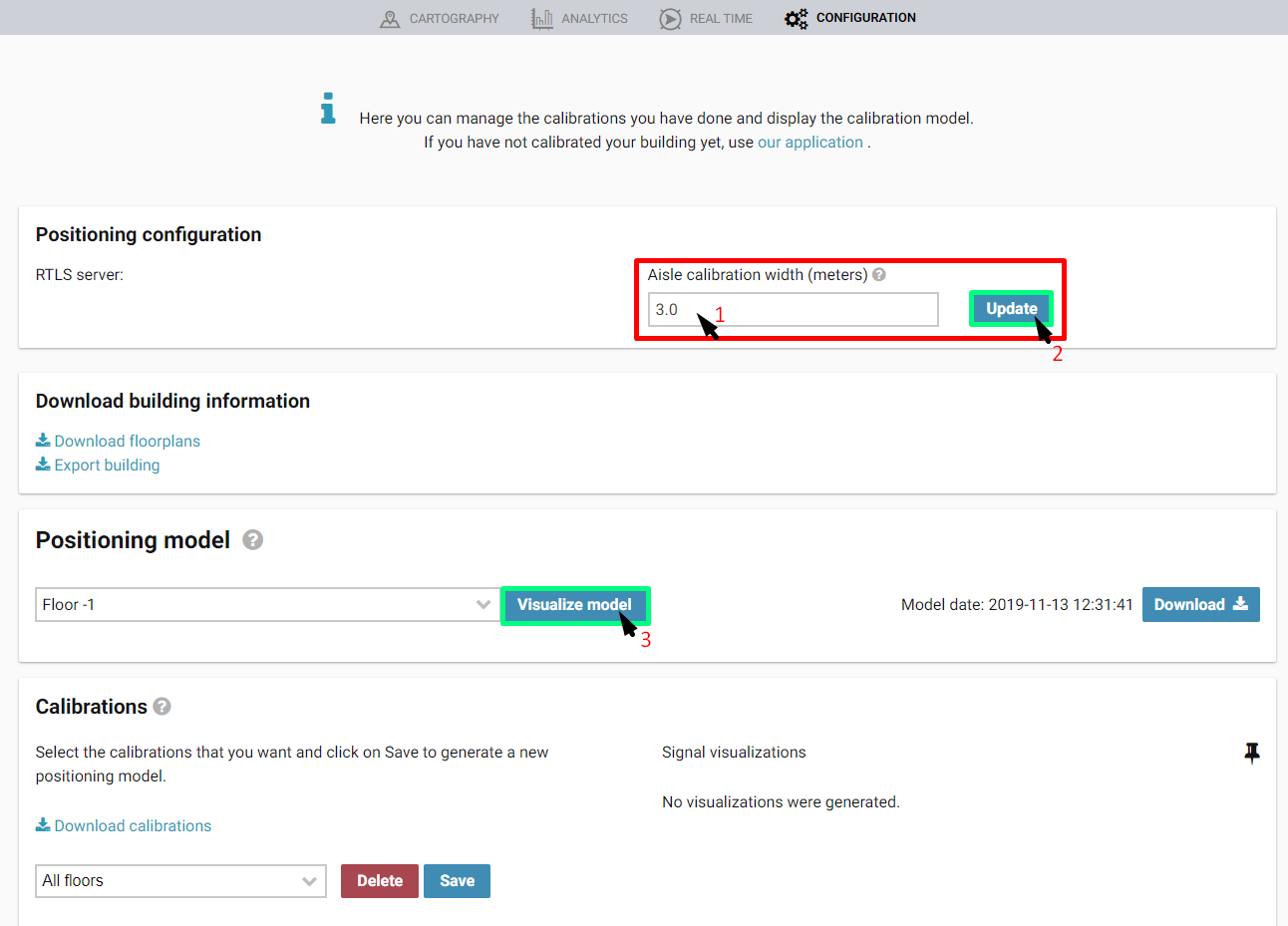

Changing the path width through Situm Dashboard is simple.You just need to click on 'Configuration' (cogs icon) and then:
- Input the path width in meters (keep in mind that the minimum value is 1.0 and the maximum 12.0).
- Click 'Update' afterwards to save the changes. This will generate a new positioning model.

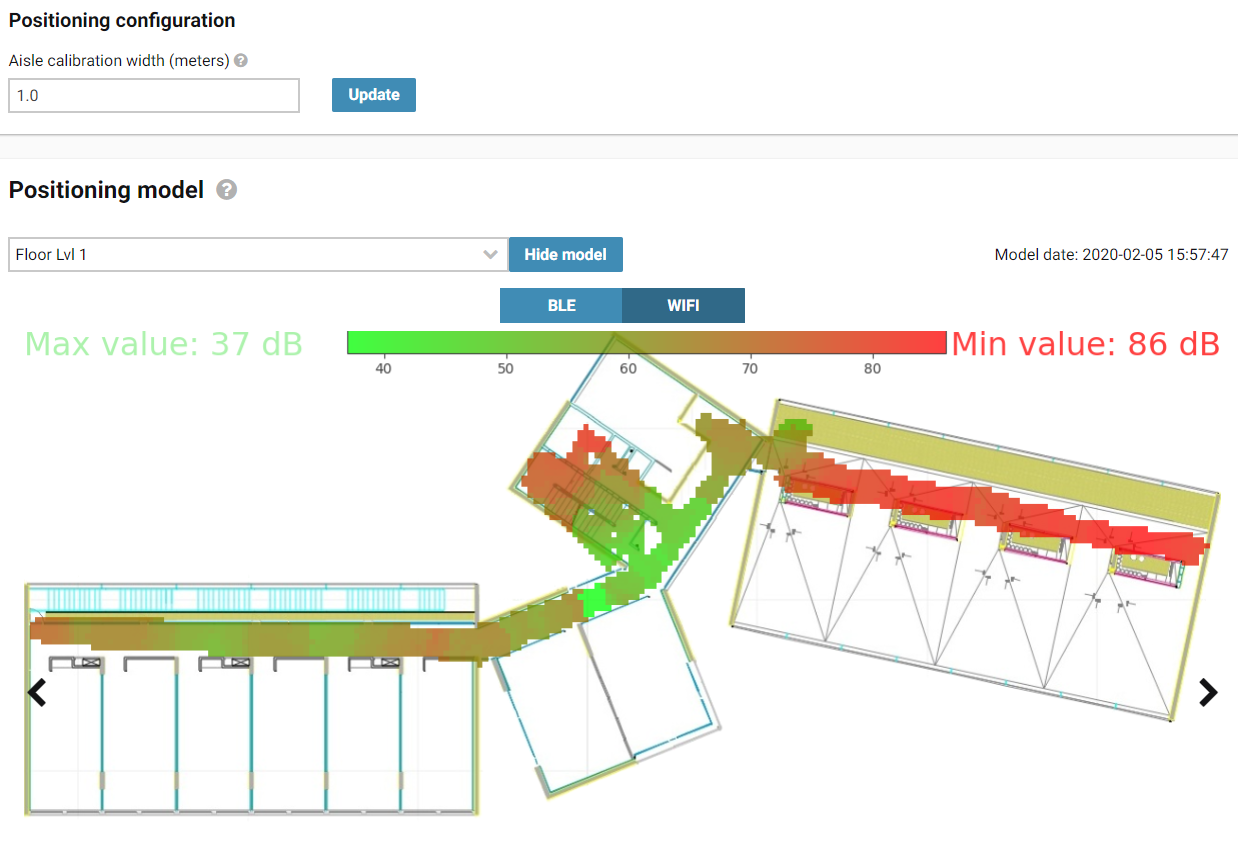

- You may visualize the new model by clicking on 'Visualize Model'.
