To get the analytics report for Routes through the dashboard, you need to first select the building you want to get these analytics from.

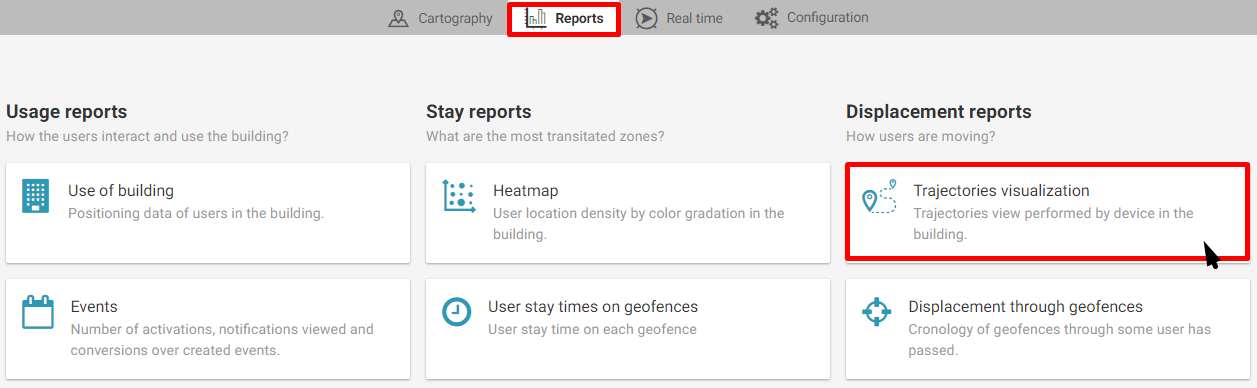

Then go to the Reports module and find the Trajectories Visualization on the Displacement Reports section.

Not unlike the previous analytics section, you will have to specify a date range.  However, it won't be possible to set a date range larger than one (1) day. Additionally, the form will change depending on the type of dashboard you have.

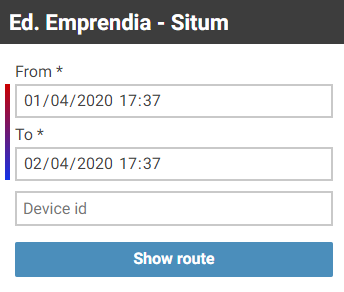

Wayfinding: If you have the Wayfinding Module, you'll only be able to establish:

• a date range
• a device ID.

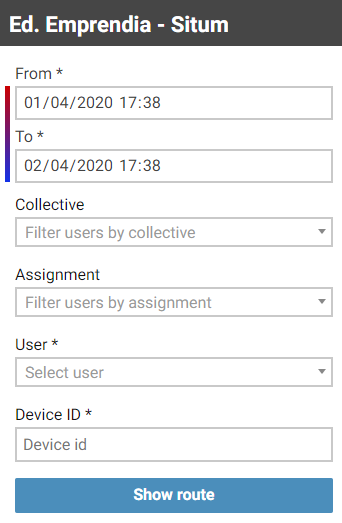

MRM: If you have the MRM Module, you'll also be able to search by:

• date range
• device ID
• Collective
• Assignment
• User

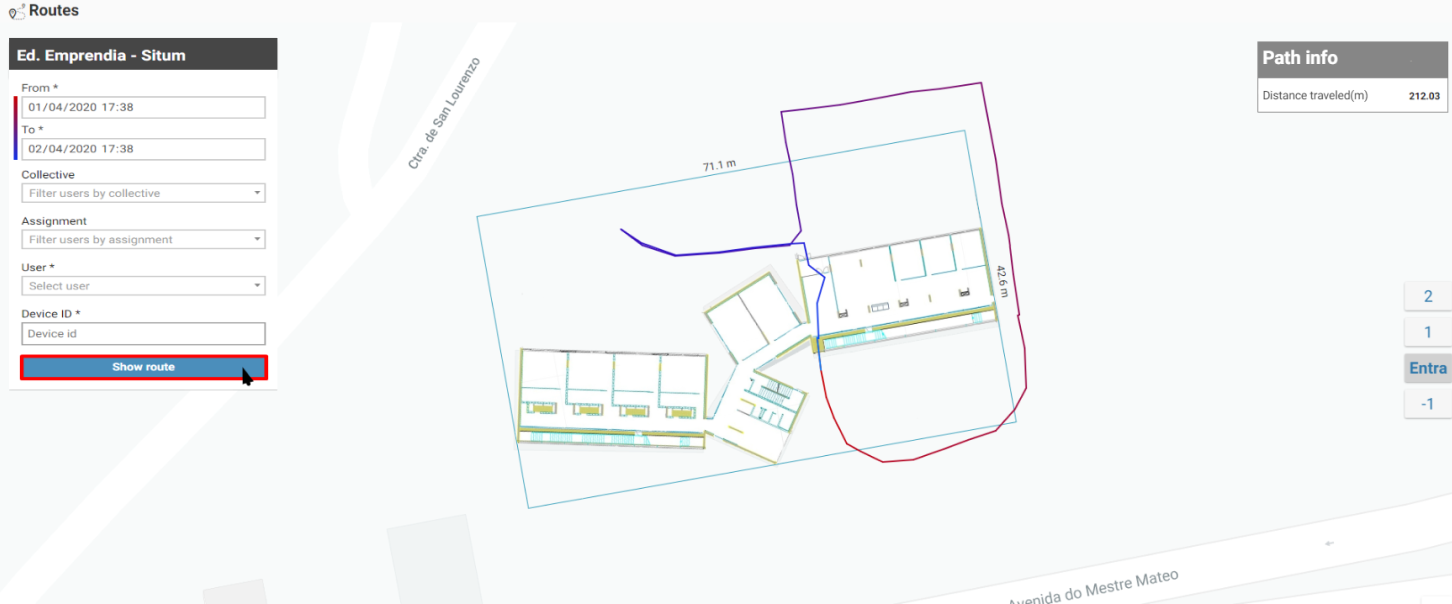

Once the Show Route button is clicked, the route that the selected user or device made will be drawn upon the floorplan, where Red will represent the starting point and Blue the ending point.

Note: outdoor trajectories will be painted on all floors, not just the first one.
